Description

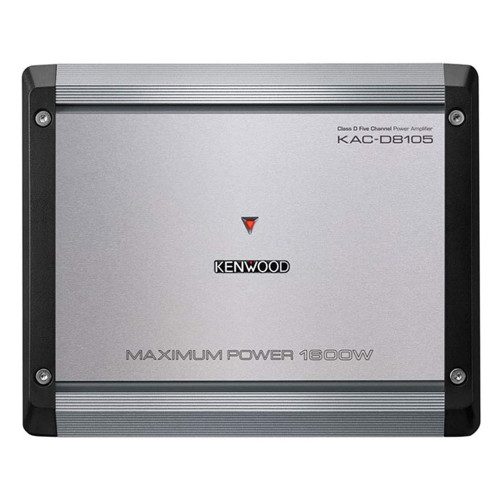

RFRB Kenwood D Series KAC-D8105 Class D 5-Channel 1600 Watt Max Power Amplifier
Kenwood D Series KAC-D8105 amplifiers provide a powerful solution in a compact design. Supporting Hi-Res Audio, KAC-D8015 is ideal for high-resolution audio playback as it features a frequency response that extends to 50kHz. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal.
Product Highlights:
- Refurbished
- 1600 Watt Class D 5-Channel Amplifier
- The amplifier will operate with 2 ohm or 4-ohm loads
- 200mV-5V High Speaker Level or Low-Level RCA Inputs
- Extruded aluminum heat sink design
- Speaker Level Input for easy integration to factory audio systems
- Signal Sensing Turn-on for easy integration to factory audio systems
- 4 Gauge power wire recommended
- Fuse - 30A x 3
Pre-Amp features:
- Frequency Response - 20Hz - 50kHz
- Signal to Noise Ratio - >80dB
- Gain Adjust - 200mV - 5V
- Speaker Level Gain Adjust - 4V - 12V
- Total Harmonic Distortion - 1.0%
- Variable Low-pass Crossover Frequency - 50Hz - 200Hz
- Variable Low-pass Crossover Slope - (dB/oct): 24dB/octave
- Variable Bass Boost @ 40Hz (0 - 18 dB)
Power Output:
- 50W x 4 @ 4 ohm and 300W x 1 @ 4 Ω
- 75W x 4 @ 2 ohm and 500W x 1 @ 2 Ω
- 150W x 2 @ 4 ohm (bridged) and 300W x 1 @ 4 Ω
MPN: KAC-D8105/B | Category: Amplifiers
