Description

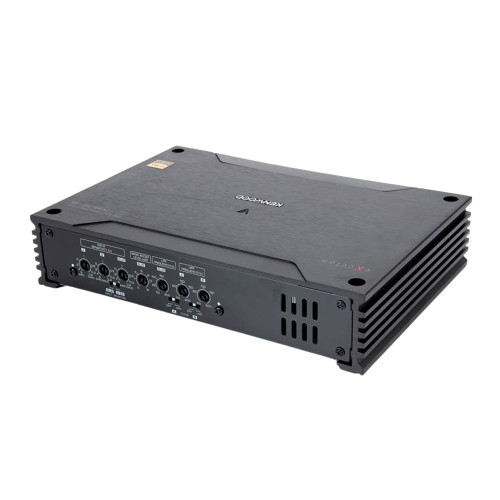

RFRB Kenwood Excelon X802-5 X Series Class D 5-Channel 1600 Watt Power Amplifier
Kenwood's Excelon X802-5 five-channel amplifier delivers 50 watts RMS to each of your front and rear speakers, while sending up to 500 watts RMS to a sub, yet it'll still fit almost anywhere in your vehicle. You can also use this amp in 3-channel mode to power a pair of high-performance speakers with 150 watts RMS each, and a sub with 500 watts.
High-and low-pass filters let you optimize the sound for your vehicle and speakers. For the subwoofer channel, a precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp's internal circuitry — analog, digital, and power supply — onto separate, non-overlapping circuit boards for improved overall sound quality.
Product Highlights:
- Refurbished
- 5-channel Power amplifier
- 50 watts RMS x 4 + 300 watts x 1 at 4 ohms
- 75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
- 150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
- CTA-2006 compliant
- Class D amp technology
- Separate variable high-pass filters on front and rear channels (50-200 Hz at 12 dB/octave)
- Variable low-pass filter on subwoofer channel (50-200 Hz at 24 dB per octave)
- Variable bass boost on sub channel (0-18 dB at 40 Hz)
- Preamp and speaker-level inputs
- Wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- Fuse rating: 30A x 3
