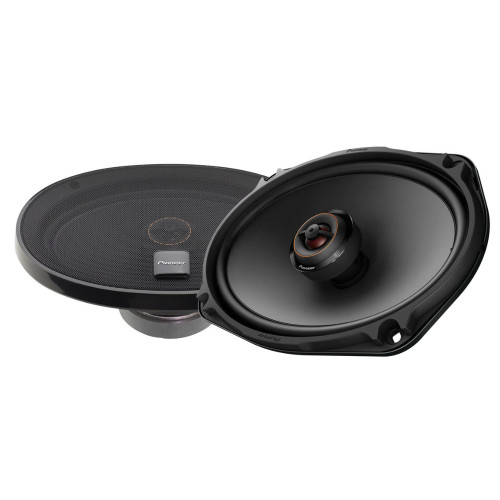

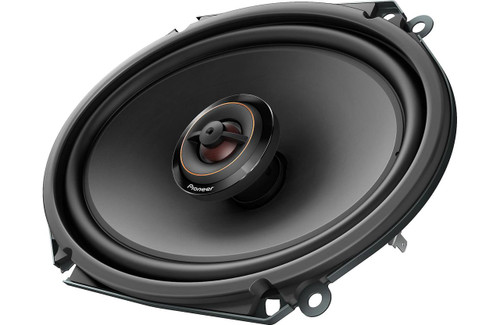

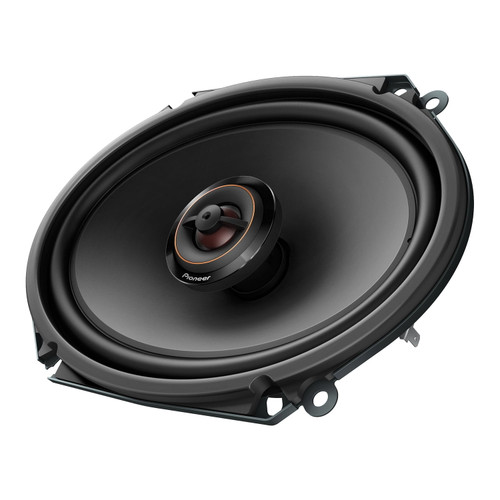

Pioneer TS-D68F D Series 6"x8" 2-way car speakers

TS-D68F 6"x8" 2-Way Coaxial System

• 26mm Polyester Soft Dome Tweeter with Swivel Capability
• Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
• Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality

D FULL RANGE, MUSIC FOR ALL

The D is a result of Pioneer's automotive loudspeaker engineering experience and expertise, combining advanced design techniques with highly developed manufacturing capabilities.

Following Pioneer's OPEN and SMOOTH sound concept, the D series of automotive loud speakers provides broad and balanced frequency response with a wide sound stage and amazing fidelity for the listener.

26mm POLYESTER SOFT DOME TWEETER

Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.

ARAMID FIBER INTERLACED INJECTION MOLDED POLYPROPYLENE (IMPP)

Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.

SYSTEM

• System Type: 2-way Coaxial
• Sound Pressure Level (Sensitivity): 87dB (+- 1.5dB)
• Frequency Range: 32 Hz to 42 kHz
• Continuous Power Handling (RMS) 80 Watts
• Maximum Peak Power Handling 240 Watts
• Nominal Impedance: 4 ohms

WOOFER

• Diameter: 6" x 8"
• Cone Material: Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
• Center Cap Material: Polyethylene Terephthalate (PET)
• Surround Material: Butyl Rubber
• Magnet Material: Ferrite
• Magnet Weight: 11.3 oz

TWEETER

• Type: Soft Dome
• Diameter: 26mm
• Diaphragm Material: Polyester
• Magnet Material: Neodymium
• Magnet Weight: 6.4 g
• Swivel Type: Yes

CROSSOVER NETWORK

• Crossover Frequency: 4000 Hz
