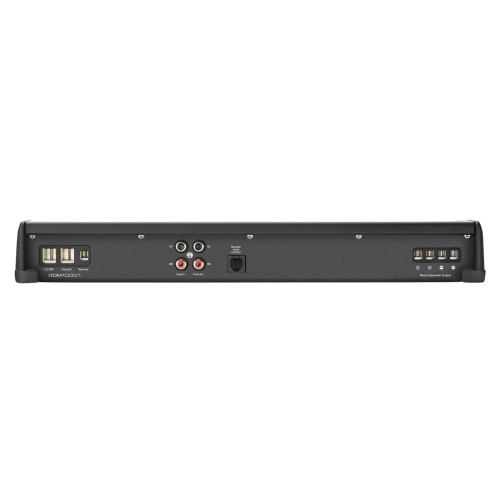

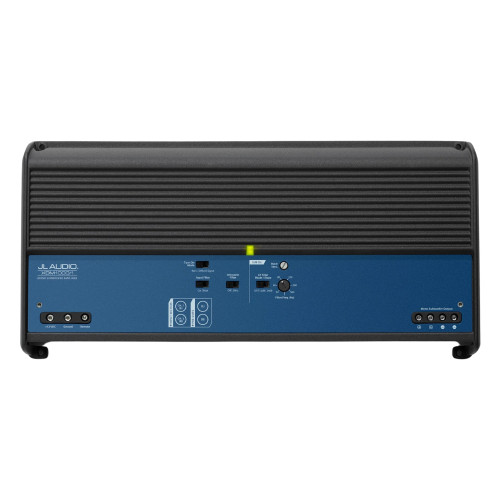

JL Audio XDM-Series XDM1000/1 Monoblock Class D 1000W Marine Subwoofer Amplifier

(No reviews yet) Write a Review

Description

JL Audio XDM-Series XDM1000/1 Monoblock Class D 1000W Marine Subwoofer Amplifier

This monoblock subwoofer powerhouse employs our high-speed NexD switching technology to achieve unprecedented efficiency and amazing power output from a very compact chassis. The XDM1000/1 generates up to 1000 W of continuous power into a 2-ohm load (14.4V, 1% THD), making it a great choice to drive higher-power subwoofer systems.

Designed for car or boat installations, the XDM1000/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

Product Highlights:

Class D Monoblock Marine Subwoofer Amplifier
4 ohms: 600 watts x 1 channel
2 ohms: 1000 watts x 1 channel
Total RMS power output: 1000 watts
Sleek black powder-coat
Built with marine-grade materials
Boat/Car input filter for noise-free performance in boats or cars
Automatic turn-on capability (via signal sensing or DC-offset sensing)
LED Power/Protect Light
Advanced Rollback Protection prevents overheating
Variable slope low-pass filter: 50-500 Hz
Defeatable infrasonic filter: 30 Hz, 24 dB/Oct.
Frequency Response: 7 - 500 Hz
Total Harmonic Distortion (THD): <1%
Signal Noise Ratio: >83 dB
Differential-Balanced Inputs combat signal noise
Input Voltage Range @ RCA Inputs: 200 mv - 4 volts
Fuse Rating: 80
4 AWG gauge power and ground wiring are recommended for installation
