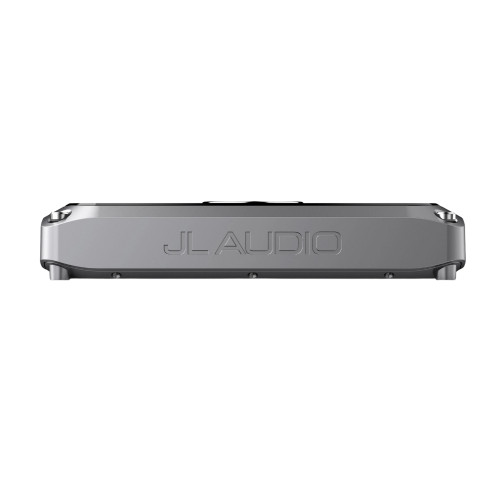

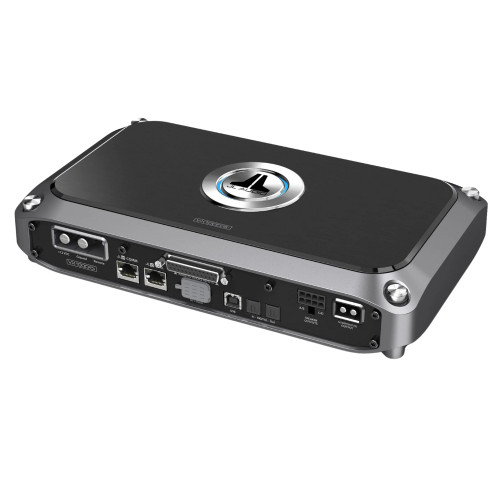

JL Audio VX1000/5i 1000W Max 5-Channel Class-D Amplifier with Built-In DSP

(No reviews yet) Write a Review
(You save $100.00 )

Shop Now, Pay Later with

Calculated at Checkout
SKU: VX1000/5I

JL Audio



Sometimes, beauty's only skin deep and other times, it's what's on the inside that counts. But when you find something gorgeous inside and out, you never pass it up. JL Audio's brand new VXi amplifiers are designed not with a balance of beauty and function, but an abundance of both. JL Audio's VXi Amplifiers do just that.

The VX1000/5i 5-Channel amplifier has a built in Digital Signal Processor (DSP). Instead of concealing the controls behind a metal plate, all the tuning is right at your fingertips. Just connect with the free TüN app.

Once your installation is finished, you can tune from anywhere, and you can change your settings without getting out the tool kit. Adjust the parametric EQs on each channel, the gain and more through a phone, tablet or computer.

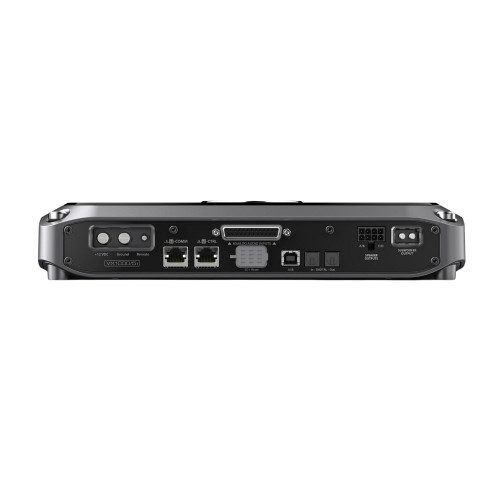

But who says looks don't matter? JL Audio placed all the connections on the VXi amps on one side, cleaning up every installation. The chassis hides all the mounting hardware. The logo badge rotates in 90-degree increments, depending on how you need to mount it, and you can change the LED backlight color to match your system. What are you waiting for? Get your VX1000/5i now and hit Add to Cart!

General Features:

  • JL Audio VXi Series VX1000/5i
  • Class-D 4-Ohm Stable 5-Channel Amplifier

RMS Power Handling:

  • 75W x 4, 400W Sub channel @ 4 ohms
  • 100W x 4, 600 Sub channel @ 2 ohms
  • Built-in DSP! Signal routing, mixing, parametric equalization, delay control and much more
  • Tuning and adjustment performed through JL Audio's TuN software
  • Optical S/PDIF digital input built- in
  • Add the JL Audio VXi-BTC Bluetooth communicator for wireless connectivity

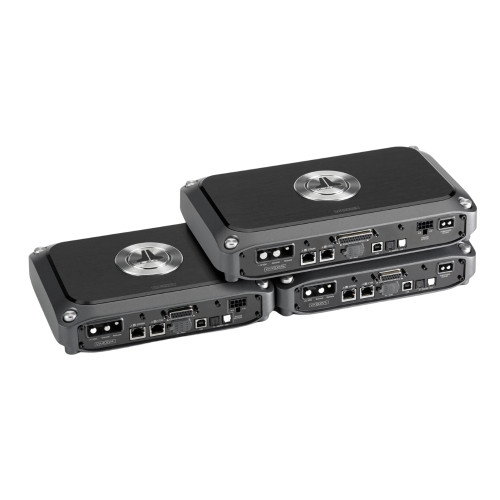

  • Network this amp and up to four more with the JL Audio VXi-HUB
  • Hi-Res audio processing at 24 bit/96 kHz
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Configurable LED logo ring displays status and can display audio preset color code or user-defined color
  • Soft start turn-on
  • 4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Signal Delay in 0.01 millisecond steps

Input sensitivity:

  • High level: 200mV-16V
  • Frequency Response: 12 - 24000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 100dB
  • 10 Bands of fully parametric EQ, per output channel, including pre-outs
  • Variable High-pass filter and Low-pass filters for each output

channels with selectable alignments and slopes:

  • Linkwitz-Riley: 12,24,48 dB/Octave
  • Butterworth: 6,12,18,24,36, 48 dB/Octave
  • All-Pass Filter (Phase EQ) with variable "Q" and corner frequency
  • Polarity Reversal (0 or 180 deg)
  • Fuse Rating: 80 A
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 11.32"W x 6.62"D x 2.12"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
