JBL DSP4086 8-channel 1000 Watts Car Amplifier With Powered DSP audio system

(No reviews yet) Write a Review
$399.95
(You save $100.05 )

Shop Now, Pay Later with

Out of stock. Contact stores for local availability.

Free Shipping
SKU: DSP4086AM
BRAND:

JBL


CONDITION: New

Description

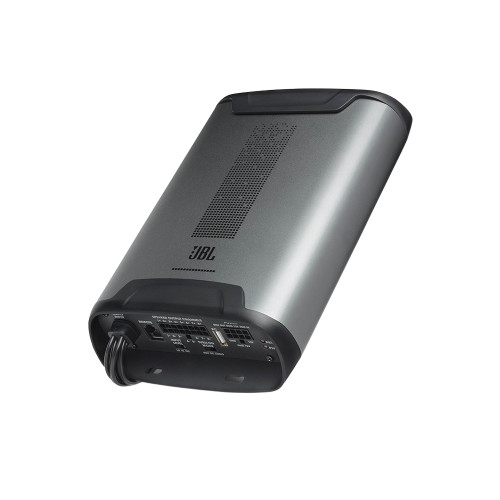

JBL DSP4086 8-channel Car Amplifier With Digital Signal Processing System

Powered DSP audio system with 6ch inputs, 8ch outputs, and easy-to-use tuning software.

JBL DSP4086 Amplifier is an audio processor for fine-tuning aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy-to-use tuning interface a novice can understand, and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.



Product Highlight:

  • Max Power: 1000W peak
  • 8-channel car amplifier with digital signal processing
    • 40 watts RMS x 8 at 4 ohms
    • 60 watts RMS x 8 at 2 ohms
  • Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0-to-48dB slopes
  • 31-band Selectable Parametric or Graphic EQ adjustment
  • Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output

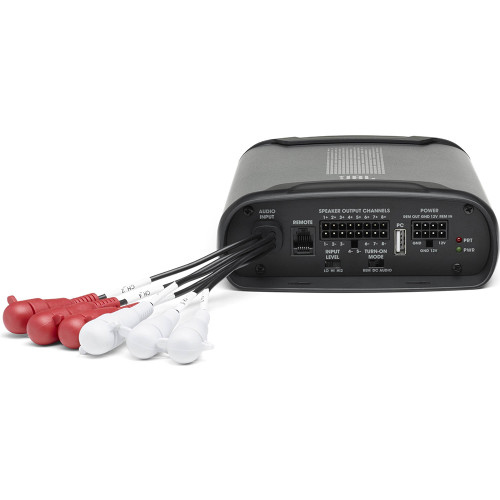

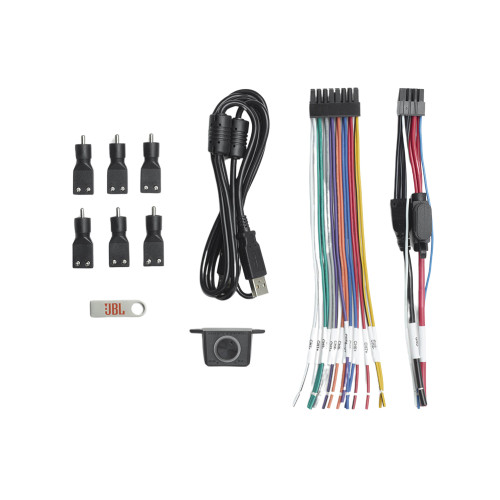

  • 6 assignable inputs preamps and speaker-level (RCA adapters included)

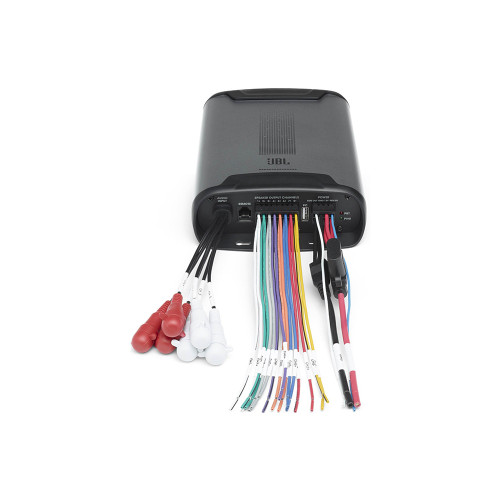

  • 8 outputs powered and processed
  • Frequency Response : 10Hz to 22kHz @ -3dB
  • Subwoofer Level Control : -30dB to +6dB
  • Signal-to-Noise Ratio :  >90dB @ 4Ω
  • Fuse Rating  :  40A
  • Operating Voltage : 8V to 16V
  • Dimensions: 5.69"W x 2"H x 9.38"D
MPN: DSP4086AM | Category: JBL DSP4086 8-channel 1000 Watts Car Amplifier With Powered DSP audio system
