Description

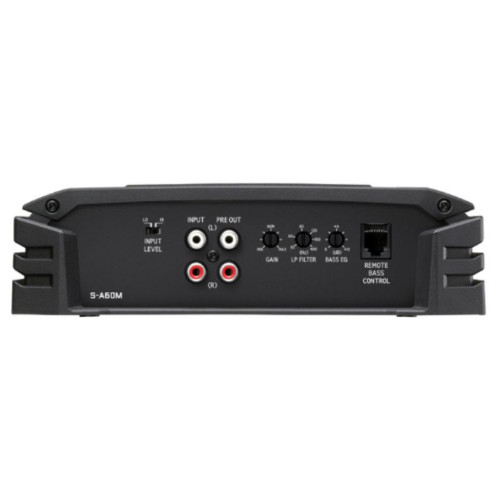

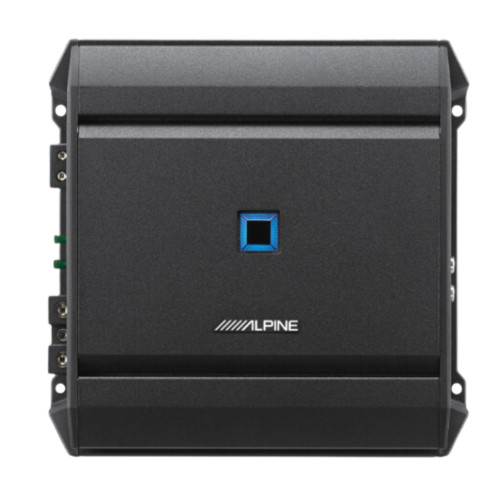

Alpine S2-A60M S-Series Mono Amplifier, W12S4 BassLine Series 12" 4-ohm Subwoofer and RUX-KNOB.2 Bass Knob
Product Highlights:
- 600W Mono Power Amplifier
- Alpine’s Class D Amplifier Circuit
- Two-sided Terminal Layout
- Built-in Selectable / Adjustable Crossovers
- Optional Remote Bass Knob Compatible (required RUX-KNOB.2 or RUX-H01, sold separately)
- Dimensions: 8.7” W x 2.25” H x 8.25” D
- Weight: 4 lbs, 13 oz
- Power Rating: 14.4V, < 1.0% THD +N
- Power Output: 330W RMS x 1 @ 4Ω, 600W RMS x 1 @ 2Ω, 600W RMS x 1 @ 1Ω
- S/N Ratio: >85dB
- Frequency Response: 10Hz – 400Hz
- Damping Factor: >1000
- CTA-2006-D Certification
- (x2) Connection end covers w/4 attachment screws
- Owner’s Manual
- “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
- (x4) Self-tapping screws
- (x1) Hexagon wrench
- Tips sheet for power supply wire connections

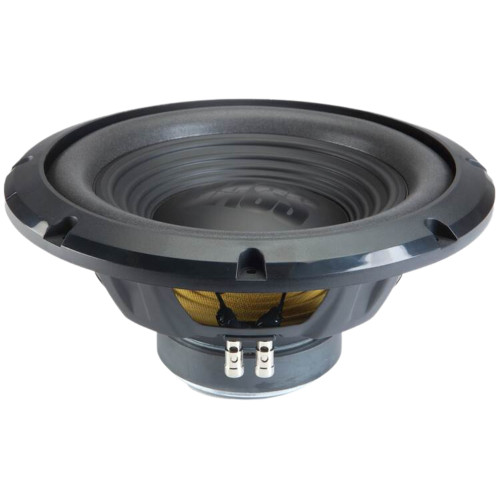

Alpine W12S4 BassLine Series 12" 4-ohm subwoofer
Product highlights:
- 12" 4-ohm subwoofer
- polypropylene and mica cone with poly-foam surround
- stamped steel frame
- power handling: 50-250 watts RMS
- peak power: 750 watts
- sensitivity: 87.9 dB
- frequency response: 22-200 Hz
- top-mount depth: 5-5/16"
- sealed box volume: 1.09 cu. ft.
- ported box volume: 1.91 cu. ft.
- grille not included
- warranty: 1 year

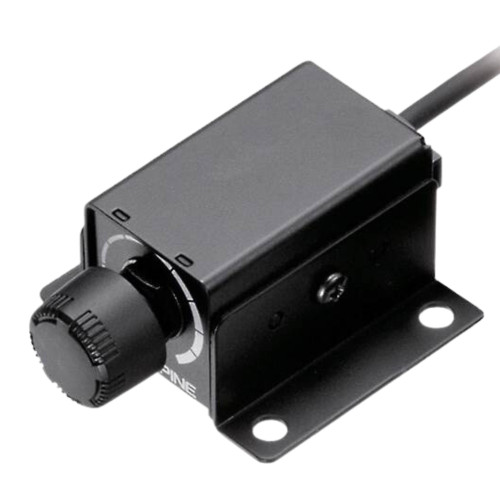

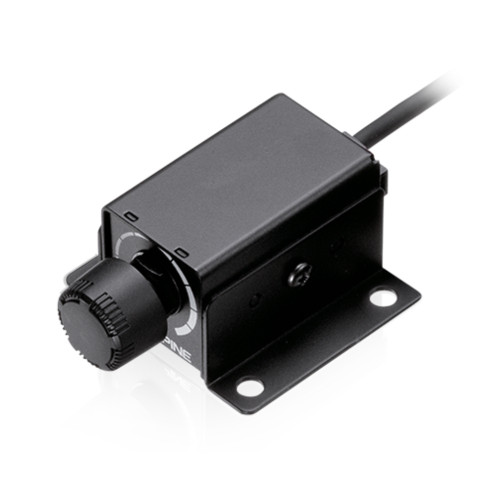

Alpine RUX-KNOB Remote Bass Knob
The optional RUX-KNOB remote bass control knob plugs right in to the MRX-M50, MRX-M100, MRX-V60, PDX-M12, PDX-M6, and PDX-V9 mono models for quick direct subwoofer control to make bass adjustments on the fly.
MPN: S2A60M-W12S4-RUXKNOB.2BND5 | Category: Bundles & Packages
