Description

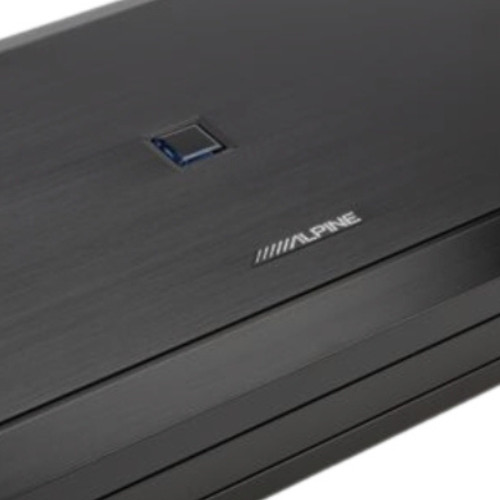

Alpine S2-A120M Mono Power Amplifier, Two S2-SB10V 10" Subwoofer Enclosures, KTX-H12 Linking Kit, and RUX-KNOB.2 Remote Bass Knob
- 1200W Mono Power Amplifier
- Alpine’s Class D Amplifier Circuit
- Two-sided Terminal Layout
- Built-in Selectable / Adjustable Crossovers
- Dimensions: 13.1” W x 2.25” H x 8.25” D
- Weight: 8 lbs, 11 oz
- Power Rating: 14.4V, < 1.0% THD +N
- Power Output: 600W x 1 @ 4Ω, 1200W x 1 @ 2Ω, 1200W x 1 @ 1Ω
- S/N Ratio: >85dB
- Frequency Response: 20Hz – 400Hz
- Damping Factor: >750
- CTA-2006-D Certification
- (x2) Connection end covers w/4 attachment screws
- Owner’s Manual
- “Birth Sheet” that certifies by measurement the actual power of the amplifier in the box
- (x4) Self-tapping screws
- (x1) Hexagon wrench
- Tips sheet for power supply wire connections
Alpine Halo S-Series S2-SB10V 10" Pre-Loaded Subwoofer Enclosure with 600 watts RMS Power
- 10" Ported subwoofer enclosure
- Kevlar-reinforced pulp cone with Santoprene rubber surround
- Dual 4-ohm voice coils wired in parallel for a 2-ohm load
- 600 watts RMS power
- Impedance: 2 ohms
- Frequency response: 25hz-215hz
- Vented enclosure tuning frequency: 36hz
- Recommended amplifiers: s-a60m / s2-a60m
- Dimensions: 16"(w) x 12.6825"(h) x 14.5"(d)

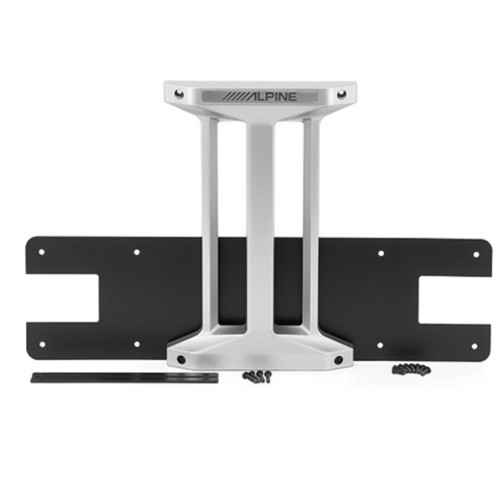

KTX-H12 Linking Kit for Two 12-inch Subwoofer Enclosures
- Aluminum rear link plate
- 12-inch Front ABS / Steel reinforced port link
- Center link stabilizing dowels
- All hardware included
RUX-KNOB Remote Bass Knob
MPN: S2-A120MBND3 | Category: Amplifiers
