Description

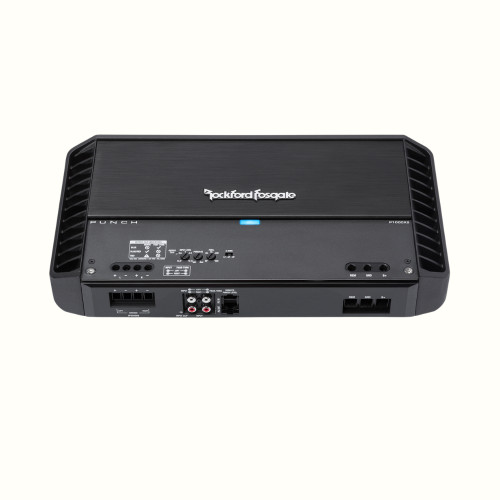

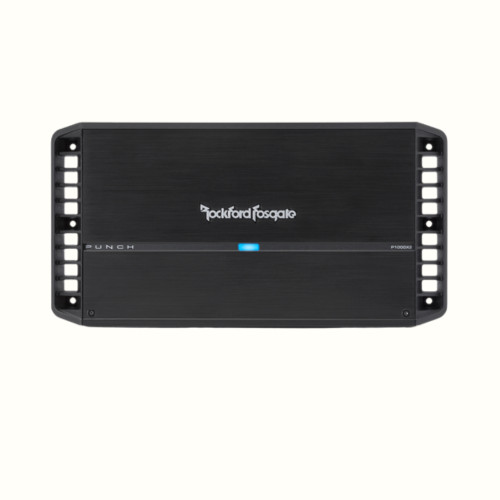

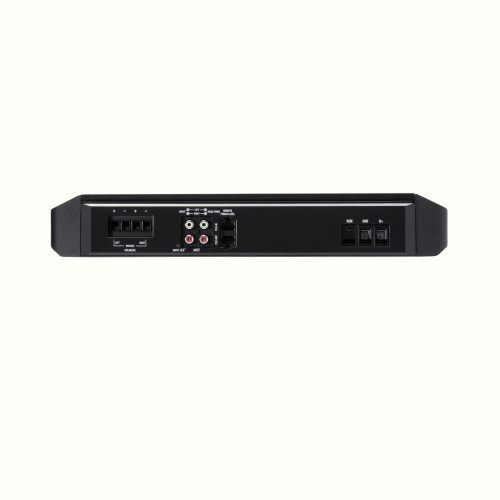

Rockford Fosgate Punch P1000X1bd Mono subwoofer amplifier
General- mono subwoofer amplifier
- 300 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- 1000 watts RMS x 1 at 1 ohm
- CEA-2006 compliant
- variable low-pass filter filter (50-250 Hz, 12 dB/octave)
- selectable subsonic filter (28Hz, 12 dB/octave)
- variable PEQ2 bass boost (0-18 dB at 45 Hz)
- Class-BD amplifier design
- frequency response: 20-250 Hz
- Dynamic Thermal Management and MEHSA MOSFET cooling systems
- MOSFET power and output stages
- preamp inputs and outputs
- speaker-level inputs (speaker wire to RCA adapter required)
- signal-sensing turn-on with speaker-level inputs eliminate need for remote turn-on lead
- optional PLC2 wired remote level control with clip light available
- 4-gauge power and ground leads and an 140-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 140-amp in-line fuse between the distribution block and the amplifier is recommended
