Rockford Fosgate P3SD2-12 Punch 12" 400W RMS P3S Shallow 2-Ohm DVC Subwoofer

Rockford Fosgate P3SD2-12 Punch 12" 400W RMS P3S Shallow 2-Ohm DVC Subwoofer

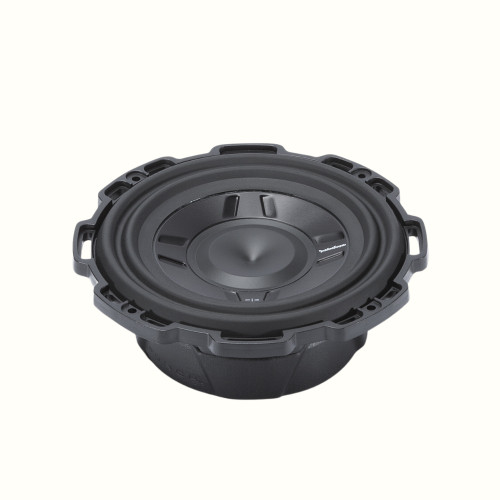

The Rockford Fosgate P3SD2-12 12" shallow mount subwoofer delivers powerful “Punch” even in tight spaces where depth is limited. Designed with Dual 2-Ohm voice coils, it provides excellent wiring flexibility to suit various installation needs. With an impressive 400 Watts RMS power handling, this subwoofer ensures a deep and dynamic bass experience, making it a perfect choice for those seeking high performance in compact installations.

Product Highlights:

• Condition: New
• Diamond-cut cast aluminum trim ring with optional grille
• Dual linear spider with embedded 16 AWG tinsel leads
• StampCast basket with integrated spider venting
• Shallow motor assembly for limited depth installations
• Optimized for both sealed and vented enclosures
• Anodized aluminum cone and dustcap
• M-Roll Santoprene surround for durability
• Power Handling: 400 Watts RMS, 800 Watts Max
• Size: 12"
• Speaker Connector: Dual 10 AWG compression
• Nominal Impedance: Dual 2-Ohm
• Magnet Weight: 51 oz. (1.45 kg)
• Voice Coil Diameter: 2.5" (65.5 mm)
• Shipping Weight: 13.25 lbs (6.01 kg)
• SPL (dB @ 1w/1m): 85 dB
• Cutout Diameter: 11.22 in. (285.0 mm)
• Woofer Displacement: 0.086 cu. ft. (2.45 liters)
• Fs (Hz): 34 Hz
• Qts: 0.67
• Vas (Liters): 35.3
• Qes: 0.75
• Mounting Depth: 3.65 in. (92.5 mm)
• Qms: 6.60
• Xmax (mm): 8.4 mm
• Re (Ohms): 3.40
• Le (mH): 2.8
• Sd (cm2): 500
• Subwoofer Type: Shallow
• Voice Coil Type: Dual Voice Coil
