Rockford Fosgate HD14RK-STAGE2 audio kit for select '14 + Road King Bikes

Rockford Fosgate HD14RK-STAGE2 audio kit for select '14 + Road King Bikes

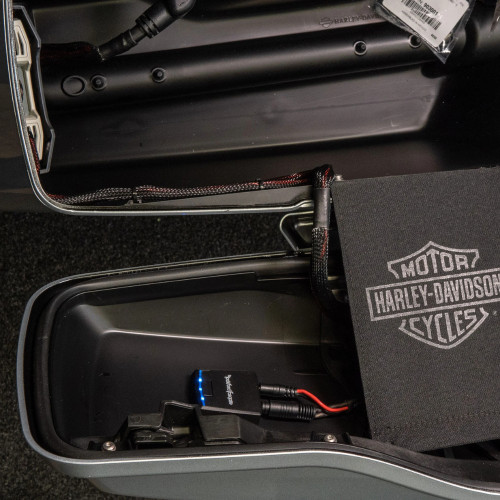

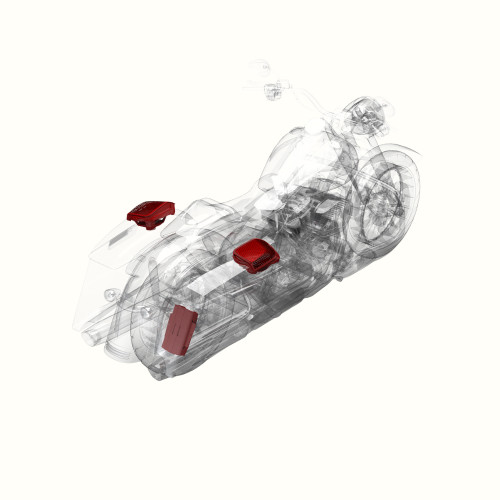

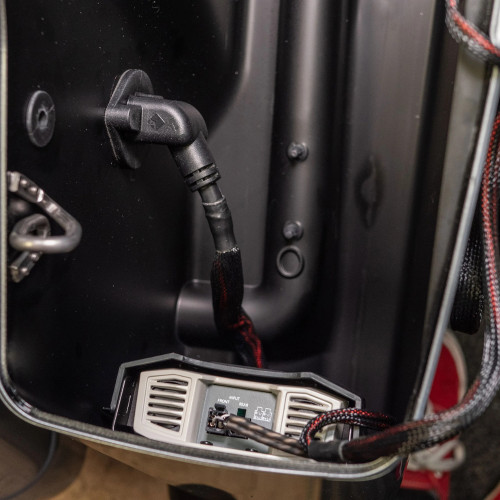

The Road King kits are designed to deliver an exceptional sound experience while retaining as much interior bag space as possible. The 6x9 inch bag lid speakers install seamlessly into the top of the factory saddlebags using the included cutting template, waterproof bag lid mounts, and speaker grilles. The speakers are connected to a 400-watt amplifier that’s mounted to a custom plate inside the rear of the bag. The system is tied together via a plug-and-play wiring harness and included Bluetooth® receiver. The rider simply connects a smartphone via Bluetooth® and you’re ready to ride. The entire system is Element Ready® to withstand rain, dirt, and dust in the riding environment. The speakers are also highly efficient and tuned to overcome wind, exhaust and road noise.

• Plug and Play design for easy installation
• Designed for use with 1998-2013 Factory Harley-Davidson® Hardshell Bag Lids
• TM400X4ad: Element Ready® Power Series 400-watt 4 channel amplifier

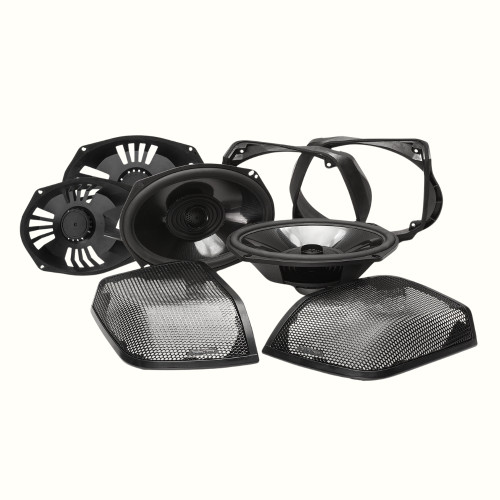

• TMS69BL14 6x9” speaker retrofit kit for factory Harley-Davidson® baglids

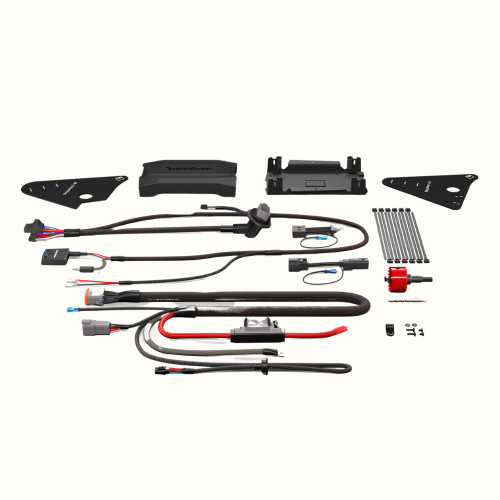

• RFK-HDRK Amplifier installation kit with mounting brackets, speaker grilles, and wiring harness and Bluetooth® receiver
• Easy One Button Pairing
• Compatible with Android 5.0 and Above, iOS 8.0 and Above
• FCC, IC, RCM, CE Certified
• 2-Year Warranty

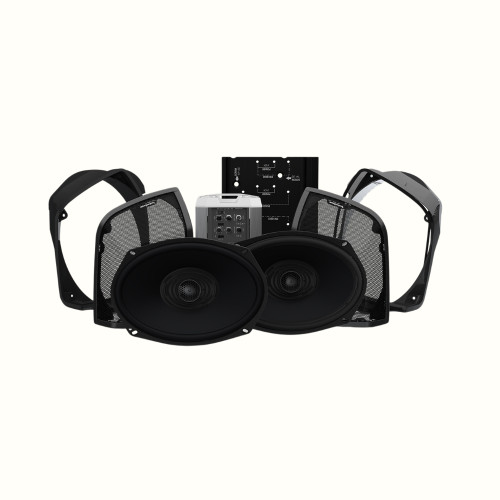

Includes:

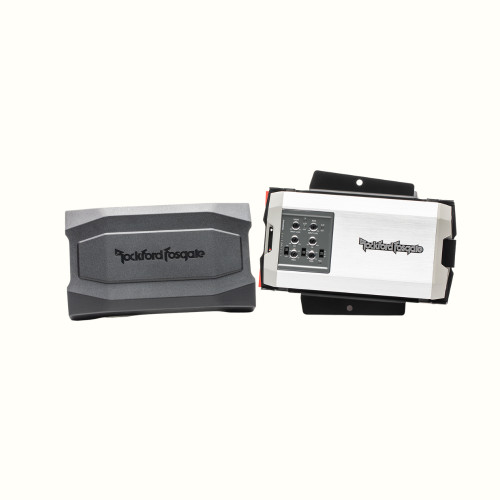

• TM400X4ad Power Series 4-channel amplifier
• TMS69BL14 6"x9" Baglid Speakers
• RFK-HDRK Installation Kit

Amp Information:

• 4-channel marine/powersports amplifier
• 100 watts RMS x 4 at 4 ohms (400 watts peak)
• 100 watts RMS x 4 at 2 ohms
• 200 watts RMS x 2 at 4 ohms (bridged)
• CEA-2006 compliant

• Class AD amp technology
• 4-ohm/2-ohm multi-impedance constant power
• conformal-coated circuit board — suitable for power sports and marine applications
• marine-grade stainless steel hardware
• twin cooling fans and real-time thermal sensing
• hidden top-mount control panel
• CLEAN set-up technology with LED input/output indicators
• speaker-level inputs (speaker wire to RCA adapter required)

• variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
• tone controls: 0-18 dB at 45 Hz; 0-14 dB at 12,000 Hz
• frequency response: 20-20,000 Hz
• fuse rating: 60A x 1 (fuse not included)
• dimensions: 8-5/8"D x 1-11/16"H x 4-5/16"W
• requires 8-gauge power and ground cable

• 6"x9" full-range motorcycle speakers
• designed for bag lid locations
• Element-Ready design is weather and water resistant
• carbon-fiber reinforced polypropylene cone
• glass-reinforced polymer frame
• 1" film dome tweeter with integrated phase plug and ASA grill
• integrated 6 dB crossover with polyester capacitor
• Element-Ready design is weather and water resistant
• Santoprene VAST surround (creates more cone space for bigger sound)
• handles up to 100 watts RMS (200 watts peak)
• frequency response: 56-20,000 Hz
• sensitivity: 89 dB
• impedance: 4 ohms

Install Kit Information:

Custom mounting bracket for installation of a TM400X4ad amplifier inside the rear of the saddlebag. Kit also includes complete plug-and-play wiring harness.

• FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
• 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
• Plug and Play design for easy installation
• Designed for use with 1998-Current Harley-Davidson® Motorcycles
• Designed for use with Power Marine TM400X4ad model amplifier
