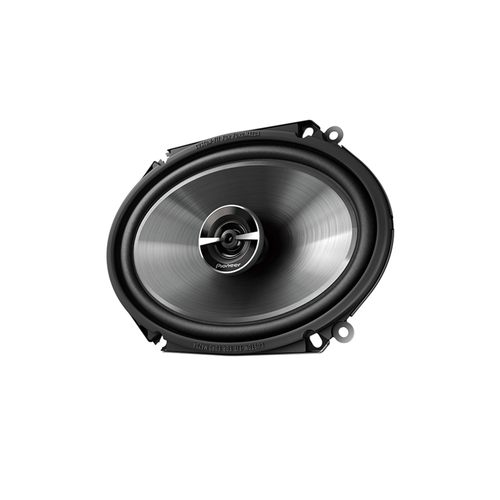

Open Box Pioneer TS-G680 6" x 8" - 2-way, 250 W Max Power, IMPP™ cone, 30mm Tweeter - Coaxial Speakers (pair)
The Pioneer TS-G680 6" x 8" is a 2-way speaker system with 250 W maximum power handling/40 W continuous power handling. In addition, it has a 30mm Tweeter to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP™ cone and a rubber-coated cloth surround giving your music more impact and presence.
- G-Series 6"x8" 2-way car speakers
- Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone
- Rubber-coated cloth surround
- 30mm PET balanced dome tweeter
- Handles up to 40 W RMS (250 W peak power)
- Frequency range: 72-14,000 Hz
- Sensitivity: 92 dB
Standards and Performance
- System-Type: Coaxial 2-way
- Continuous Power Handling (RMS): 40 Watts
- Maximum Peak Power Handling: 250 Watts
- Sensitivity (1W/1m): 92 dB
- Frequency Range: 1400 hz - 72 kz
- Nominal Impedance: 4 ohms
Features and Materials
- Cut Out dimensions: 7-1/2" x 5-1/4"
- Mounting Depth: 2-1/2"
- Tweeter: 30mm
- Basket Material: Stamped Metal
- Cone Material: IMPP - Carbon and Mica
- Damper: Poly cotton
- Magnet Material: Ferrite
- Magnet Weight: 5.5 oz
- Shorting Ring Material: Copper
- Surround Material: Rubber Coated Cloth
- Surround Type: Rolled
- Voice Coil Bobbin: Kapton
- Voice Coil wire: Copper
- Wire Terminals: Lug Type
Tweeter
- Diaphragm Material: Polyethylene terephthalate (PET)
- Type: Balance Dome
