AudioControl The Epicenter Concert Series Digital Bass Restoration Processor

Digital Bass Restoration Processor

Your MP3 player thinks your car stereo is a pair of headphones, so it removes the bass! The Epicenter restores the earth-shaking power and heart-pounding bass your subwoofers crave.

Give your subwoofers the juice to go lower and hit harder.  The Epicenter uses a bass circuit to drive your subwoofers lower, grabbing the attention of every eye on the boulevard.

Product Highlights

• Patented Bass Maximizer™

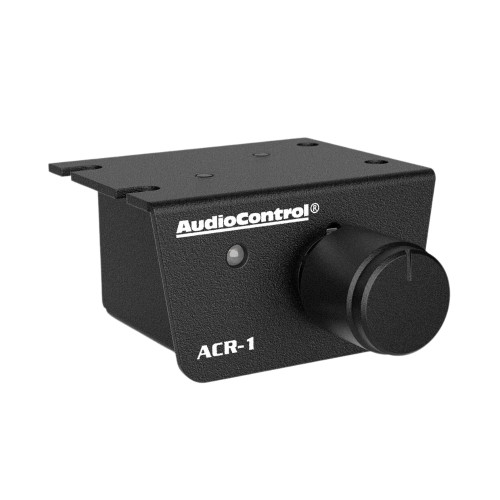

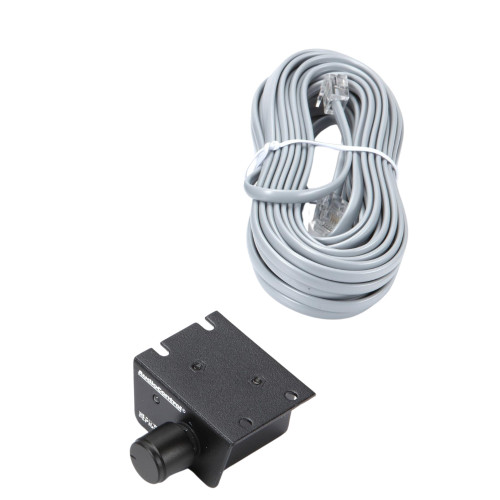

• Dash mount control
• Bass restoration lighted display
• Parametric bass control
• PFM Subsonic Filter
• Balanced inputs
• Bass Output Control

Specifications

• Inputs
• Preamp Inputs: 1 (2 channels)
• Maximum Input Level: 15Vrms
• Input Impedance: 10kΩ
• Outputs
• Preamp Outputs: 1 (2 channels)
• Maximum Output Level: 13.5Vrms
• Output Impedance: 150Ω

Performance

• Total Harmonic Distortion: 0.003%
• Frequency Response: 10Hz-100kHz
• Signal to Noise: 110dB
• Control
• Remote In

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 150mA
• Recommended Fuse Rating: 1A
• Weights & Dimensions
• Dimensions: 8″W x 5.5″D x 1.2″H
• Weight: 1.8 lbs (0.8 kg)
