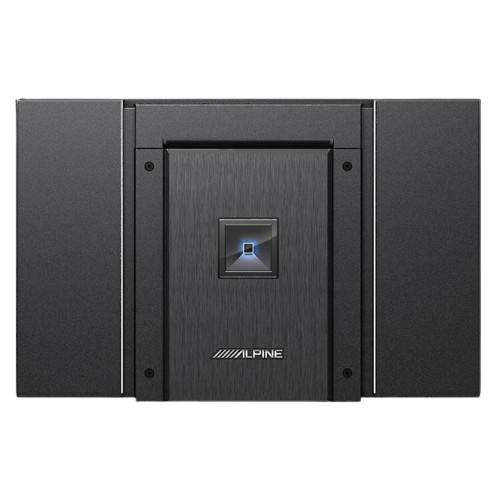

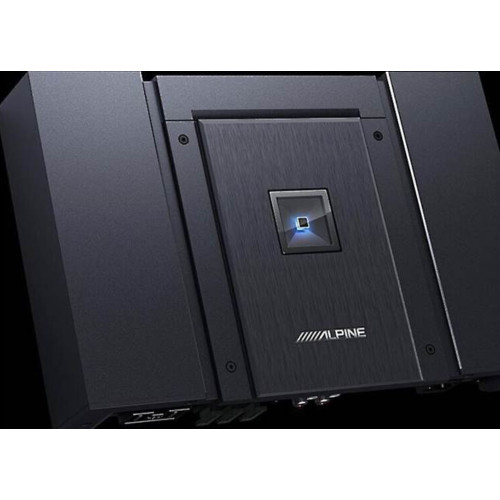

Alpine Status HDA-M80 Hi-Res Mono Amplifier

Alpine Status HDA-M80 Hi-Res Mono Amplifier

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level. This mono amplifier offers superior sound control that is user-friendly, easily accessible, and simple to install.

Superior Sound

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.

Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Precise Sound Reproduction

The HDA-M80 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.

Incredible Reliability

Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the subwoofers for ultimate reliability.

Easy Installation

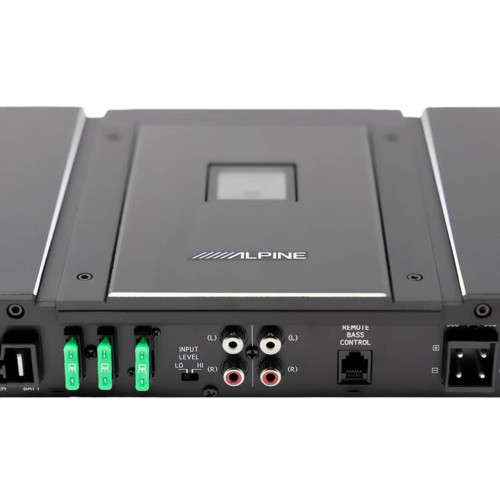

The HDA-M80 features Alpine’s quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.

Optimized For Full System

The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system to achieve the highest in-class audio performance only second to the Ultra High-Resolution Alpine F#1System.

• Hi-Res Audio Playback (192kHz/24Bit)
• Mono-Channel Amplifier
• High-Efficiency Digital Circuit Design
• Alpine’s Dual Negative Feedback Control Circuit
• High Bandwidth Amplifier
• Alpine’s Premium Class D Circuit Design
• Copper-Plated Chassis
• Black Circuit Board
• One-Sided Terminal Layout
• Top Panel Sound Controls
• Quick Connect Power and Speaker Terminals
• Optional Remote Bass Knob Compatible (requires RUX-KNOB.2 or RUX-H01, sold separately)

• Dimensions: 11.4375” x 7.5” x 2.125”
• Power Rating: (14.4V, ≤1.0% THD+N)
• 800W x 1 @ 2Ω
• 500W x 1 @ 4Ω
• THD+N: 0.02% (10W into 4ohm)
• S/N Ratio: 83dB (1W into 4ohm)
• Frequency response: 8-400Hz (-3dB)
• Damping factor: 1500
• Selectable input level – HI/LO
• Variable High pass / Low pass crossover
• Variable Subsonic filter
• Bass EQ (0 to +12dB, Variable)
• Auto-turn on with remote sensing
