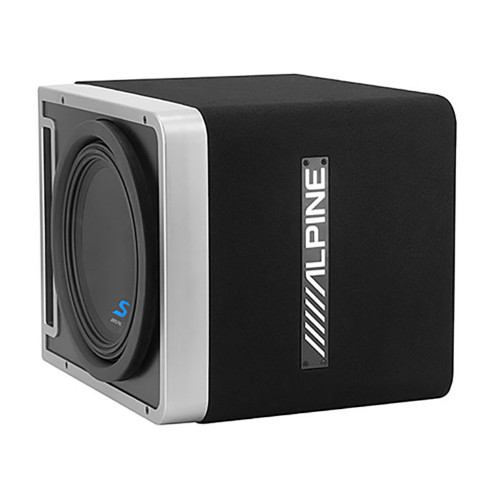

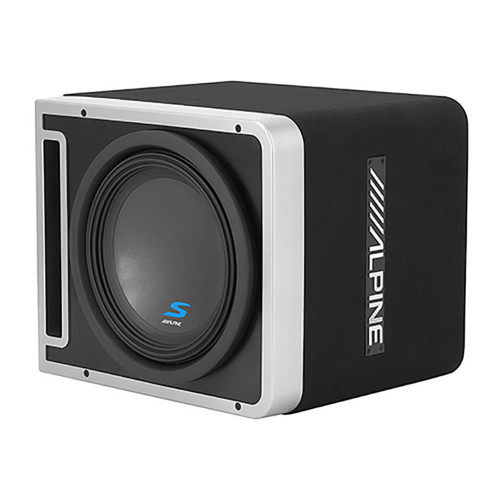

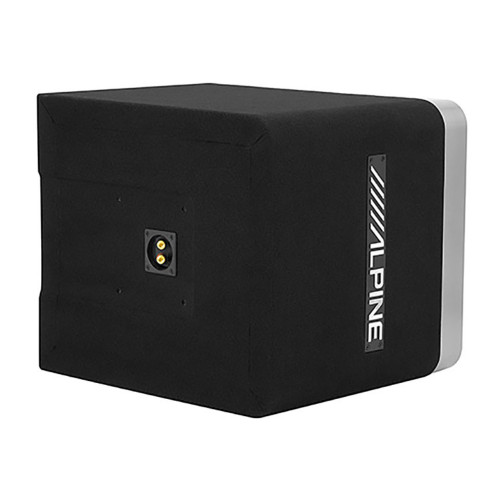

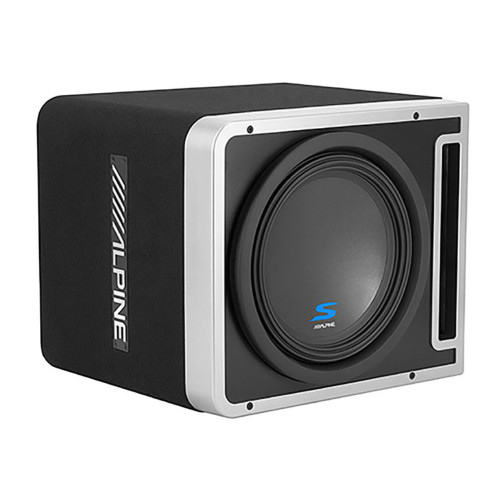

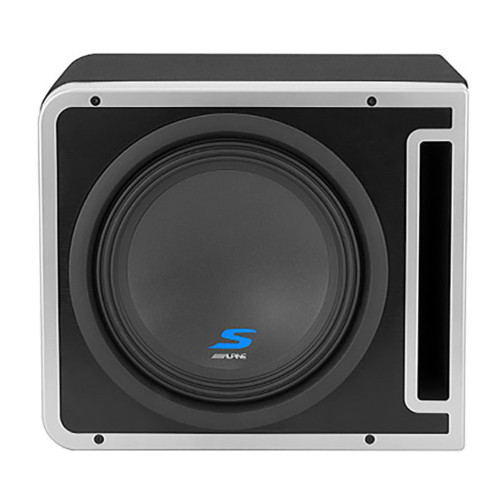

Alpine S-SB12V Pre-Loaded S-Series 12-inch Linkable Subwoofer Enclosure

Alpine S-SB12V Pre-Loaded S-Series 12-inch Linkable Subwoofer Enclosure

Enclosure Stacking Features

Unique to Alpine, the subwoofer 10-inch and 12-inch enclosures are available as a single or “linked” format with an optional mounting bracket. This innovative design allows the sound consumer the option to easily add more bass to their system.

The optional mounting bracket (sold separately) is available in a 10-inch KTX-H10 or 12-inch KTX-H12 solution that mounts to the face of the subwoofer and links for a sturdy, dual-subwoofer enclosure. The silver enclosure trim matches the steel bracketing and Halo display trim for a synergized look.

Optimized Performance

The ported enclosure design delivers a higher total sound output for deep, powerful bass, reliable sound reproduction and overall great sound quality. The 10-inch enclosure is tuned to 36 Hz while the 12-inch enclosure is tuned to 35 Hz for optimized performance with Alpine’s S-and-R-Series subwoofers.

• Includes S-W12D4 wired in parallel
• 600W RMS power handling
• 2Ω Impedance
• Ported enclosure design
• Frequency response: 26-200 Hz
• Vent tuning frequency: 35 Hz
• Dimensions 17-inch W x 14.625 H x 15-inchD
