Alpine Status Series HDZ-W10 10" Component Subwoofer with HDA-V90 Amplifier and HDZ-653S 6.5" 3-Way Component Speakers
Upgrade your vehicle’s sound system with a premium Alpine package that includes the Status Series HDZ-W10 10" Component Subwoofer, HDA-V90 Amplifier, and HDZ-653S 6.5" 3-Way Component Speakers. Designed to deliver clear highs, rich mids, and powerful bass for an enhanced in-car audio experience.

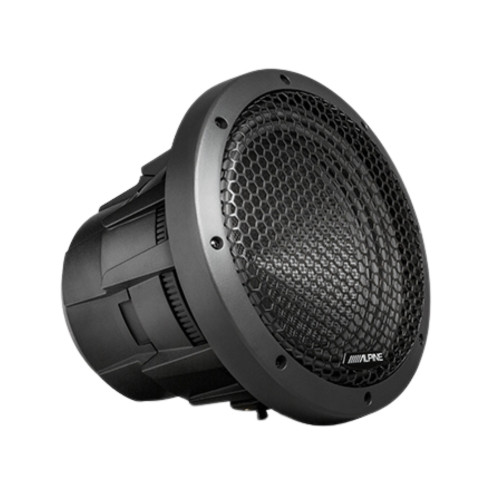

Alpine HDZ-W10 Component Subwoofer:
- Condition: New
- 10" Subwoofer
- Carbon fiber dust cap with pulp-mica cone
- Triple-stacked strontium ferrite magnets
- HAMR surround for powerful bass
- Dual progressive spiders with tinsel leads
- Cast aluminum frame with trim ring
- Extended pole geometry design
- 20mm linear excursion
- Frequency response: 24Hz–200Hz
- Power: 800W RMS / 2400W peak
- 2.6" (65.5mm) voice coil
- Magnet weight: 174 oz (x3)
- Mounting depth: 7-7/16"
Alpine HDA-V90 Amplifier:
- Condition: New
- Hi-Res audio playback (192kHz/24Bit)
- 5-channel amplifier
- High-efficiency digital circuit
- Dual negative feedback control
- Premium Class D design
- Copper-plated chassis with black circuit board
- One-sided terminal layout
- Top panel sound controls
- Quick connect power & speaker terminals
- Power rating: 75W x 4 + 300W x 1 @ 4Ω, 100W x 4 + 500W x 1 @ 2Ω
- Bridged output: 200W x 2 @ 4Ω (ch1/2, ch3/4)
- THD+N: 0.02% (10W into 4Ω)
- S/N ratio: 87dB (1W into 4Ω)
- Frequency response: 8–60kHz (-3dB)
- Damping factor: 500 (channels 1–4), 1000 (subwoofer)
- Selectable input level (HI/LO)
- Selectable 2/4/6-channel input
- Variable high-pass/low-pass crossover
- Variable subsonic filter (subwoofer)
- Bass EQ: 0 to +12dB
Alpine HDZ-653S Component Speakers:
- Condition: New
- 3-Way Speakers
- Hi-res audio playback (192kHz/24Bit)
- Carbon composite diaphragm material
- Proprietary double-gathered edge surround
- 6.5" mid-bass driver (16.5cm)
- 3.5" midrange driver (8.5cm)
- 1" high-range driver (2.5cm)
- Power: 100W RMS / 300W peak
- Frequency response: 55Hz–40kHz
- Sensitivity: 88dB
