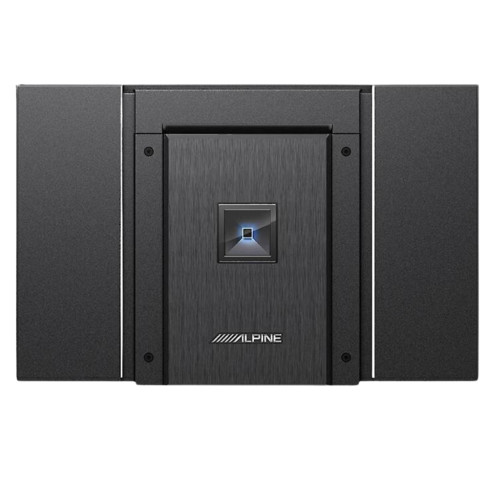

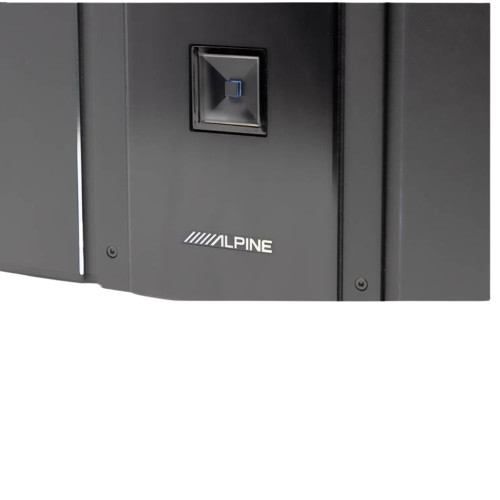

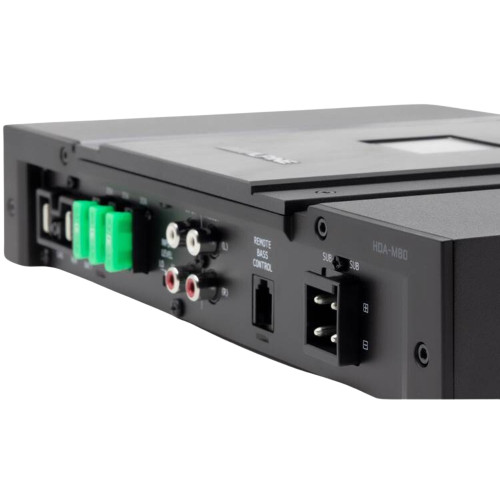

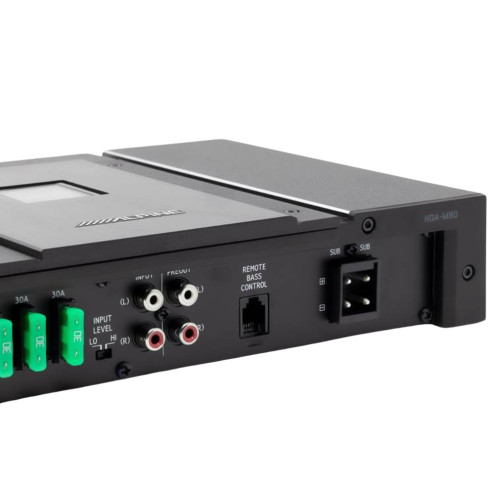

Alpine HDA-M80 Status Series 800W Class D Mono Amplifier with RUX-KNOB.2 Remote Bass Knob
Experience the impressive power and exceptional performance of the Status Series HDA-M80 Mono Amplifier. This advanced Class D amplifier circuit delivers outstanding audio quality in a more compact design, perfect for any setup. The package includes a convenient remote bass knob, allowing you to easily adjust the bass levels to your preference.
Product Highlights:
- Condition: New
- 800W Mono Amplifier
- High-efficiency digital circuit design
- Alpine’s dual negative feedback control circuit
- High bandwidth amplifier
- Alpine’s premium Class D circuit design
- Copper-plated chassis
- Black circuit board
- One-sided terminal layout
- Top panel sound controls
- Quick connect power and speaker terminals
- Optional remote bass knob compatible
- Dimensions: 11.4375" x 7.5" x 2.125"
- Power Rating: 800W x 1 @ 2Ω, 500W x 1 @ 4Ω (14.4V, ≤1.0% THD+N)
- THD+N: 0.02% (10W into 4ohm)
- S/N Ratio: 83dB (1W into 4ohm)
- Frequency response: 8-400Hz (-3dB)
- Damping factor: 1500
- Selectable input level – HI/LO
- Variable high pass / low pass crossover
- Variable subsonic filter
- Bass EQ (0 to +12dB, variable)
- Auto-turn on with remote sensing
Alpine RUX-KNOB.2 Remote Bass Knob:
- Condition: New
- Optional remote bass control knob
- Plugs into select Alpine amplifiers
- Provides quick, direct subwoofer control
MPN: HDA-M80-RUX-KNOB.2 | Category: Alpine HDA-M80 Status Series 800W Class D Mono Amplifier with Remote Bass Knob
