Rockford Fosgate HD9813SG-STAGE3
Source unit, four speakers & amplifier kit for select 1998-2013 Street Glide motorcycles
Includes:
- PMX-HD9813 (source unit)
- TMS6SG (front fairing speakers)
- TM400X4AD (amplifier)
- RFK-HD9813 (installation kit)
- TMS69BL13 (bag lid kit)
Rockford Fosgate PMX-HD9813 Harley Kit
This factory replacement unit was designed specifically for 1998-2013 Harley-Davidson Electra Glide, Street Glide, and Road Glide Models
Features:
- Bluetooth
- Pandora
- SiruisXM Ready
- USB Connectivity
- Element Ready: Weatherproof Design
- Rated Power: 50WX4@ 2 Ohms, 25WX4@ 4 ohms RMS
- Display: 3" Full Color TFT with Day/Night Mode
- AM/FM Tuner
- Graphic EQ: 7-band
- Easy installation

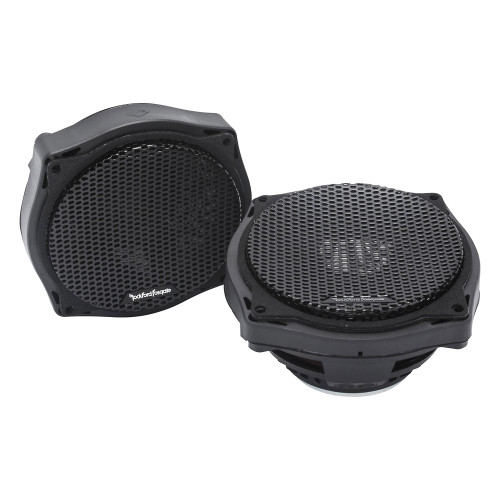

Rockford Fosgate TMS6SG 6” full range coaxial for 1998-2013 Street Glide
75 watts RMS, 150 watts peak, grilles included
- 6-1/2" full-range motorcycle speakers
- designed for the fairing speaker locations on 1998-2013 Harley-Davidson Street Glide models
- Element-Ready design is weather and water resistant
- 25 mm neodymium tweeter with integrated phase plug and ASA grill
- carbon-fiber reinforced polypropylene cone
- Santoprene VAST surround
- Santoprene front isolation spider
- 35mm voice-coil
- neodymium ring magnet motor
- glass-reinforced polymer frame
- integrated spade terminals
- integrated 6 db crossover with polyester capacitor
- power handling: 75 watts RMS (150 watts peak)
- frequency response: 56-20,000 Hz
- sensitivity: 91 dB
- grilles and mounting hardware included
Rockford Fosgate TM400X4AD Power Series marine/powersports 4-channel amplifier
General
- 4-channel marine/powersports amplifier
- 100 watts RMS x 4 at 4 ohms (400 watts peak)
- 100 watts RMS x 4 at 2 ohms
- 200 watts RMS x 2 at 4 ohms (bridged)
- CEA-2006 compliant
Rockford TMS69BL9813
- compatible with 1998-2013 Harley-Davidson factory bag lids
- direct connect wiring harness
- includes all installation hardware, grilles, and accessories
- 6"x9"" full-range motorcycle speakers
- designed for bag lid locations
- Element-Ready design is weather- and water-resistant
- carbon-fiber reinforced polypropylene cone
- glass-reinforced polymer frame
- 1" film dome tweeter with integrated phase plug and ASA grill
- integrated 6 dB crossover with polyester capacitor
- Element-Ready design is weather and water resistant
- Santoprene VAST surround (creates more cone space for bigger sound)
- handles up to 100 watts RMS (200 watts peak)
- frequency response: 56-20,000 Hz
- sensitivity: 89 dB
- impedance: 4 ohms
Rockford Fosgate RFKHD9813 Installation Kit
- Amp mounting plate for select Harley-Davidson motorcycles
- Type 1 bracket (large)
- Type 2 bracket (small)
- 76" 8-gauge Power/ground harness with in-line 60A MAXI fuse and fuse holder
- 9.5' Rear Input/Output harness
- 32" Front output harness
- 18" Front input harness
- 4 Flat-head screws (requires 2mm Allen wrench)
- 4 Pan-head screws (requires T-10 Torx wrench)
- Two 3/4" threaded pins (requires 2mm Allen wrench)
